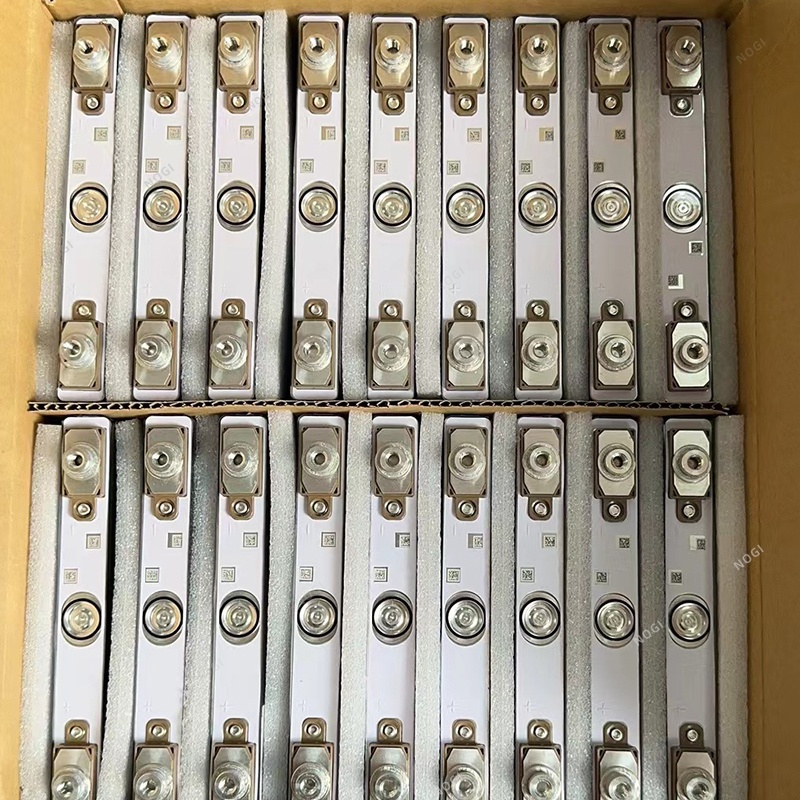

100% inspected and packed very well, 2-Year Warranty;
Our top‑quality 3.2V 22Ah Li‑22P LiFePO4 cell is a high rate lithium battery with 10C continuous and 30C peak discharge capability. This 30C discharge lithium battery features ultra‑low internal resistance ≤1.0mΩ, over 4000‑cycle lifespan and stable power output. Perfectly work as motorcycle starting battery, electric scooters battery, power source for electric bikes and light EV vehicles. Light‑weight 621g with compact dimension 173*21*90mm, it delivers instant burst power, excellent safety performance and long‑term reliability for high‑drain power projects.

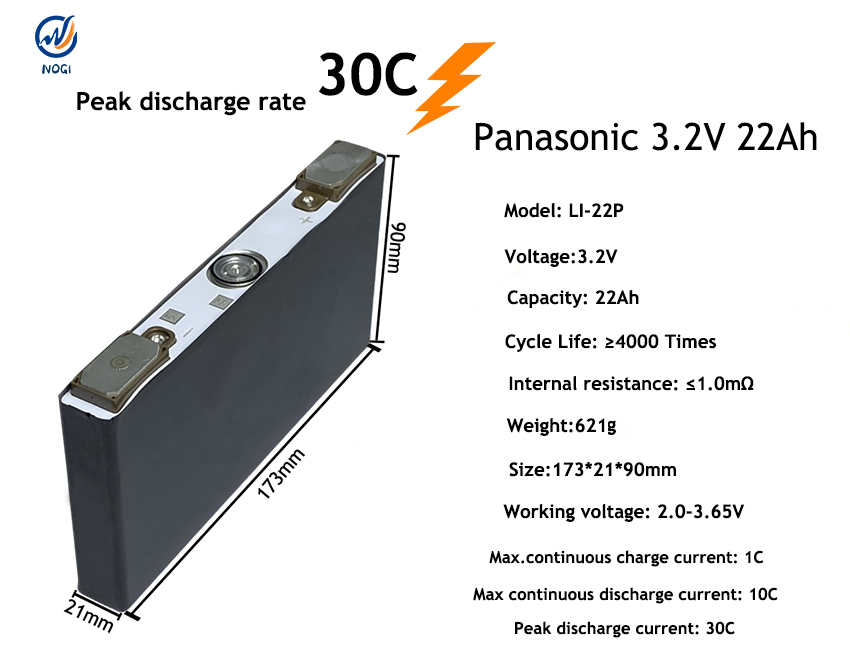

1. Cell Specifications
|
Battery Model
|
LI-22P
|
|
Battery Type
|
Prismatic LiFePo4 rechargeable battery
|
|
Nominal Voltage
|
3.2V
|
|
Nominal Capacity
|
20Ah
|
|
Charge Voltage
|
3.65V
|
|
Discharge Cut-off Voltage
|
2.0V
|
|
Max Charge Current
|
1C
|
|
Max Discharge Current
|
10C
|
|
Peak Discharge Current
|
30C
|
|
Internal Resistance
|
≤1mΩ
|
|
Charge Temperature
|
0℃~55℃
|
|
Discharge Temperature
|
-20℃~55℃
|
|
Storage Temperature
|
-20~45℃
|
|
Cycle Life
|
≥4000cycles
|
|

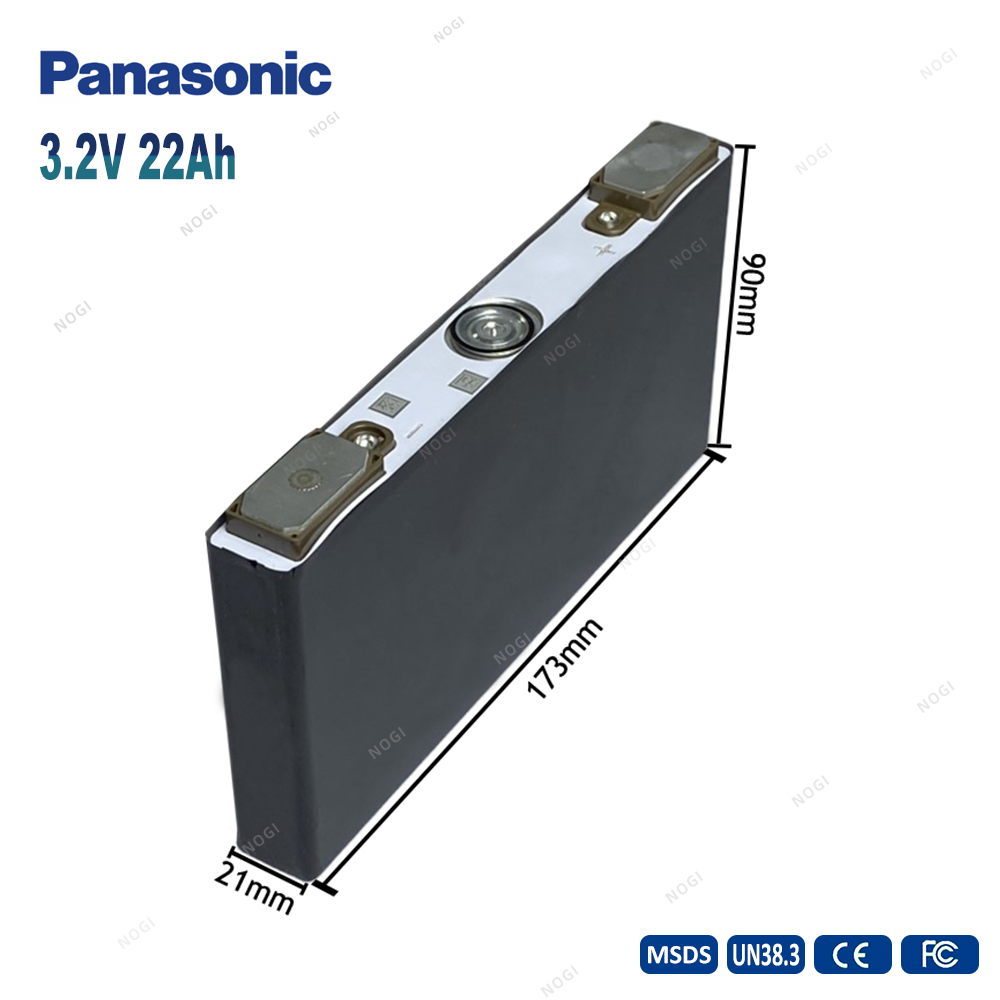

Battery Size
|
173*21*90mm
|
|
Battery Weight
|
0.62kg
|
|
Warranty
|
3 Years
|
2. Why Panasonic 22Ah LFP Cell?
Panasonic 3.2V 22Ah LFP prismatic cell delivers 30C peak high‑rate discharge. Low internal resistance, 4000+ cycles, safe & stable. Ideal for e‑bike, e‑scooter, motorcycle starting and small‑EV battery packs.
30C Peak High‑rate Discharge
Provides instant surge power for fast acceleration and heavy startup load
Ultra‑low Internal Resistance ≤1.0mΩ
Minimize heat build‑up and guarantee steady high‑current output
Long Cycle Life ≥4000 Times
Significantly cut your long‑term battery replacement cost
Compact Prismatic Structure
173*21*90mm, only 621g, flexible for various pack layouts
Wide Application Compatibility
Perfect for electric bikes, scooters, motorcycle starting, light electric vehicles3. Customer Review
Every acknowledgment from clients fuels NOGIBattery's development. Our team stays dedicated to supplying dependable lithium cells for all partners.
4. Customer FAQ
Q: What is a LiFePO4 (LFP) battery cell?
A: LiFePO4 (LFP) is lithium iron phosphate cell. It is a safe, long‑cycle lithium chemistry with excellent thermal stability, widely used for energy storage and traction power systems.
Q: What are the main advantages of LFP cells compared to NMC lithium cells?
A: LFP features higher safety, longer cycle life, better overcharge & high‑temperature resistance, and lower cost, though its energy density is relatively lower.
Q: What does 10C continuous and 30C peak discharge mean on a high‑rate LFP cell?
A: 10C continuous means the cell can steadily release 10× rated current long‑term; 30C peak allows short‑time burst high current for startup or acceleration.
Q: Can high‑rate LFP cells be used for motorcycle starting and e‑scooter?
A: Yes. High‑discharge LFP cells with large peak current output work perfectly for motor startup, electric bikes, scooters and light EV projects.
Q: Are import duties and VAT already covered in your DDP quotation?
A: Yes. Our DDP quote includes freight, customs brokerage fee, import duty and local taxes. You don’t need to pay any further customs‑related cost upon arrival.
