Hotsale Farasis p76 3.7V 76Ah NMC Pouch Cell for ebike scooter motorcycle etc
Our hotsale Farasis P76, Farasis 76Ah NMC pouch cell rates 3.7V 76Ah, an ideal core to produce motorcycle batteries, ebike battery and scooter battery. Adopting high-performance NMC ternary chemistry, this Farasis 76Ah pouch cell delivers high energy density and steady high-rate discharge to satisfy power demands of e-bikes, scooters and electric motorcycles. Grade A cells undergo rigorous capacity inspection with over 1000 cycle lifespan. Flexible pouch design optimizes battery grouping and weight control. Widely stocked for bulk order, the Farasis P76 NMC pouch cell is a cost-effective raw material for global battery pack makers specializing in ebike, scooter and motorcycle batteries.

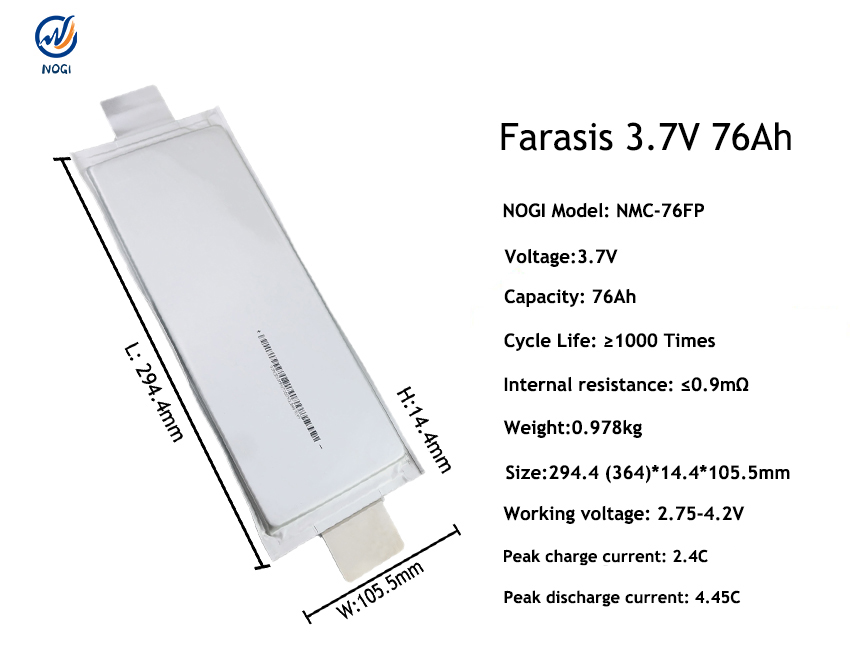

1. Cell Specifications
|
Battery Model
|
NMC-76FP
|
|
Battery Type
|
NMC Pouch Cell
|
|
Nominal Voltage
|
3.7V
|
|
Nominal Capacity
|
76Ah
|
|
Charge Voltage
|
4.2V
|
|
Discharge Cut-off Voltage
|
2.75V
|
|
Peak Charge Current
|
2.4C
|
|
Peak Discharge Current
|
4.45C
|
|
Internal Resistance
|
≤0.9mΩ
|
|
Charge Temperature
|
-20-60℃
|
|
Discharge Temperature
|
-30~55℃
|
|
Storage Temperature
|
-20~35℃
|
|
Cycle Life
|
≥1000 Times
|
|

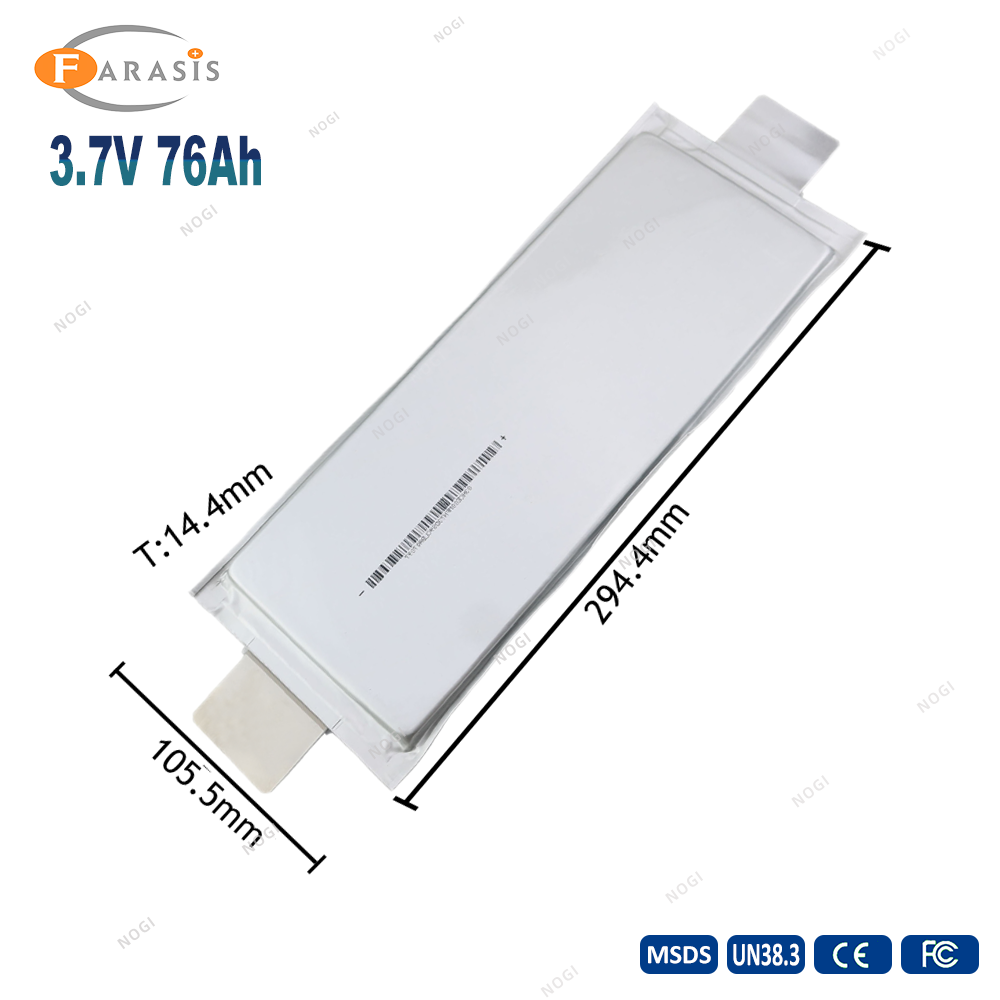

Battery Size
|
294.4 (364)*14.4*105.5mm
|
|
Battery Weight
|
0.978kg
|
|
Warranty
|
2 Years
|

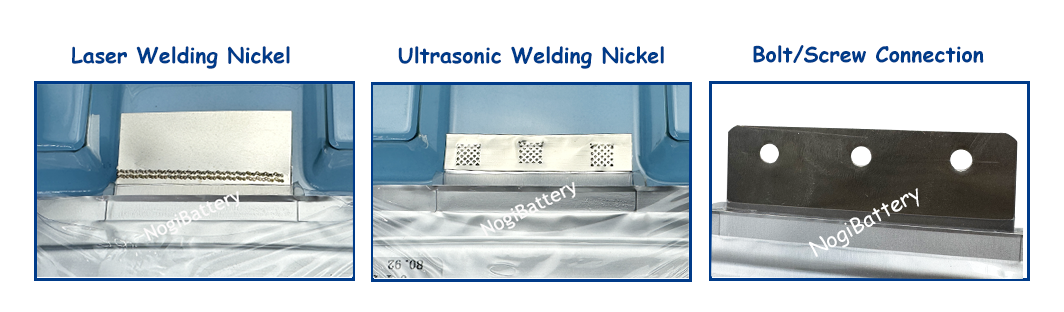

How to Connect Pouch Cells in Series / Parallel
The tabs of pouch cells serve as conductive output terminals. The mainstream connection processes are as follows:
Laser Welding: Mainly applied in fully automatic production lines with fast welding speed and excellent consistency. (Recommendation)
Ultrasonic Welding: Weld tabs with nickel strips, copper busbars or PCBs. This is the widely adopted industrial solution featuring low contact impedance and reliable connections. (Recommendation)
Bolt/Screw Connection: Suitable for large-size thick tabs. It allows easy disassembly and maintenance yet requires more assembly space. (If must）
2. Why NMC Pouch Cell?
-High Energy Density
Adopting premium high-nickel ternary cathode materials, NMC pouch cells achieve outstanding energy density than traditional lithium batteries. They maximize energy storage in limited space and effectively extend the operating time of EVs, portable power stations and various mobile devices.
-Flexible Structure and Full Customization Capability
Featuring lightweight aluminum-plastic laminated film packaging, NMC pouch cells own flexible and ultra-thin properties that rigid batteries cannot match. Their customizable sizes and shapes adapt to irregular internal spaces, perfectly fitting drones, wearable devices, AGVs and customized energy storage modules.
-Reliable High-Rate Discharge Performance
Optimized internal electrode structure enables NMC pouch cells to support stable high-current and peak load discharge. These cells deliver consistent and reliable power output, making them suitable for power tools, electric bicycles, industrial power supplies and other high-power scenarios.
-Excellent Low-Temperature Performance
NMC chemistry maintains stable discharge capacity even at -20°C, outperforming LFP which suffers from severe lithium plating under cold conditions.The NMC pouch cell ensures reliable cold-start for EVs, drones, and outdoor power devices in winter or high-altitude regions.

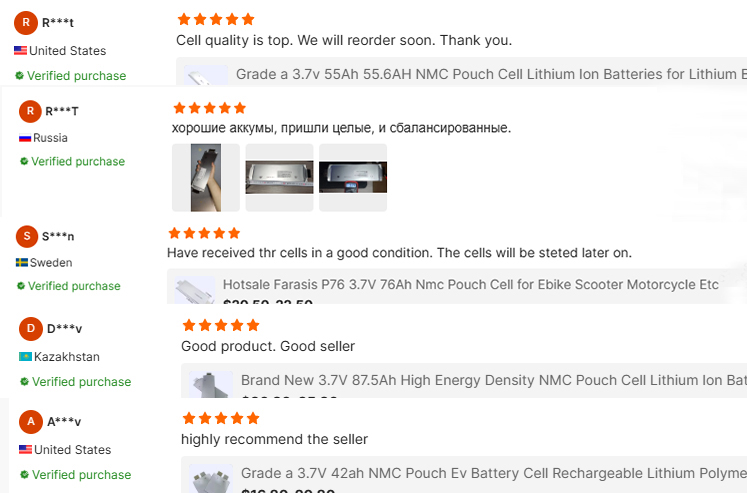

3. Customer Review
Every acknowledgment from clients fuels NOGIBattery's development. Our team stays dedicated to supplying dependable lithium cells for all partners.
4. Customer FAQ
Q: How to extend the cycle life of NMC pouch cells?
A: Limit charging to 90% SOC (around 4.05V) instead of full 4.2V charge to boost cycle life by 40%. Operate within 20%–80% SOC and avoid deep discharge or full charge frequently. 25℃ is the optimal operating temperature; long-term temperature above 35℃ accelerates side reactions and cuts lifespan by nearly 40%. For battery packs, match cells with capacity difference within 1% and adopt active balancing BMS to stabilize voltage consistency.
Q: What chemistries of lithium cells do you supply?
A: We supply NCM ternary lithium cells and LFP lithium iron phosphate cells in multiple shapes (prismatic/Pouch/cylindrical etc) for different application scenarios. And Strict grouping on voltage, internal resistance & capacity ensures low difference for parallel/series assembled battery packs before dellivery.
Q: Can you provide complete shipping documents?
A: Yes, full set files including MSDS, UN38.3 test report, transport appraisal report and certification documents can be provided.
Q: Can you ship to our port/warehouse directly?
A: Yes. We offer flexible shipping terms of FOB, CIF, DAP and DDP for global lithium battery delivery. DDP door-to-door tax-inclusive shipping is widely favored by our overseas buyers.
