Product Overview

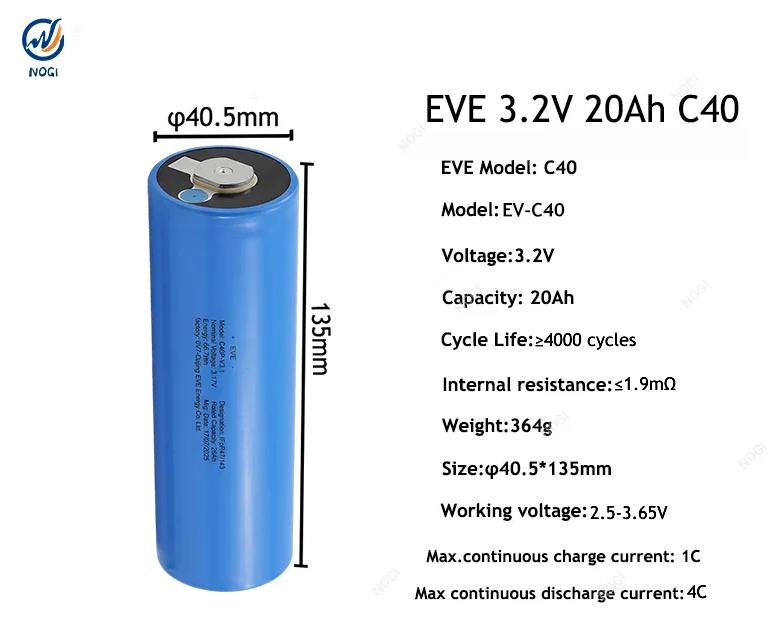

EVE C40 40135 LiFePO4 Cell Overview
The EVE C40 IFR40135 is a large-format cylindrical LiFePO4 battery cell with a nominal capacity of 20Ah. Its 40135 cylindrical format provides a practical combination of capacity, durability and pack integration for electric mobility, industrial equipment and customized lithium battery systems.
According to the manufacturer specification, the C40 supports a maximum continuous charge current of 1C and a maximum pulse discharge current of 4C for 30 seconds under specified test conditions. Cycle performance reaches 4,000 cycles with ≥80% capacity retention under the specified 0.5C/0.5C test conditions.
For battery pack design or replacement projects, cell dimensions, operating voltage, discharge requirements, temperature conditions and series-parallel configuration should be evaluated according to the complete battery system requirements.
1. EVE C40 IFR40135 Cell Specifications
|
Manufacturer
|
EVE
|
|
Battery Model
|
C40 / IFR40135
|
|
Cell Chemistry
|
LiFePO4 (LFP)
|
|
Cell Format
|
Cylindrical 40135
|
|
Nominal Voltage
|
3.2V
|
|
Nominal Capacity
|
20Ah
|
|
Operating Voltage Range
|
2.5-3.65V (T > 0°C) / 1.8–3.65V (T ≤ 0°C)
|
|
Maximum Continuous Charge Current
|
1C
|
|
Maximum Pulse Discharge Current
|
4C, 30s
|
|
Internal Resistance
|
≤1.9mΩ
|
|
Charge Temperature
|
0-55℃
|
|
Discharge Temperature
|
-20~60℃
|
|
Storage Temperature
|
-20~50℃
|
|
Cycle Life
|
≥4,000 cycles
|
|
Battery Size
|
φ40.5*135mm
|
|
Battery Weight
|
366g
|
|
Warranty
|
3 Years
|
EVE C40 IFR40135 DatasheetView the EVE C40 IFR40135 3.2V 20Ah LiFePO4 battery cell datasheet for detailed technical specifications, including electrical performance, dimensions, charge and discharge conditions, cycle life, safety limits and testing requirements. View EVE C40 Datasheet →
2. Why Choose the EVE C40?
The EVE C40 IFR40135 combines 20Ah capacity, long cycle life and reliable LiFePO4 performance in a large cylindrical cell format, making it suitable for mobility, industrial and custom battery systems.
• 20Ah Large Cylindrical Cell
40135 format with 20Ah capacity for flexible battery pack integration.
• 4C Pulse Discharge
Supports up to 4C pulse discharge for 30 seconds under specified conditions.
• Long Cycle Life
Up to 4,000 cycles with ≥80% capacity retention under specified 0.5C/0.5C test conditions.
• Wide Temperature Range
Supports charging from 0°C to 55°C and discharging from -20°C to 60°C.
Recommended Applications
The EVE C40 3.2V 20Ah LiFePO4 cell can be considered for battery systems such as:
• Electric motorcycles and scooters
• E-bikes and light electric mobility
• Industrial equipment
• Backup power systems
• Portable power applications
• Custom LiFePO4 battery packs
Final cell selection should be based on the required voltage, capacity, discharge current, installation dimensions, thermal conditions and battery pack configuration.
Other EVE Cylindrical Battery Cells
Explore other EVE cylindrical battery cells available from NOGI Battery, including 18650, 21700, 33140 and 46-series models for different capacity and power requirements.
| Model No. |
Material |
Voltage |
Shape |
Capacity |
Battery Size |
Battery Weight |
Cycles Life |
Peak Discharge Rate |
| INR18650/25P |
NMC |
3.7V |
18650 |
2500mah |
φ18.35*65mm |
48g |
≥300 Cycles |
12C |
| ICR18650/26V |
2550mAh |
φ18.3*65mm |
45g |
≥800 Cycles |
5C |
| INR18650/33V |
3200mAh |
φ18.35*65mm |
44.5g |
≥1000 Cycles |
3C |
| INR18650/35V |
3500mAh |
φ18.35*65mm |
50g |
≥1000 Cycles |
5C |
| INR21700/40P |
21700 |
4000mAh |
φ21.15*70.15mm |
70g |
≥600 Cycles |
12.5C |
| INR21700/40PL |
4000mAh |
φ21.15*70.15mm |
69g |
≥600 Cycles |
22.5C |
| INR21700/50E |
5000mAh |
φ21.15*71.15mm |
71g |
≥1000 Cycles |
5C |
| 21700/50PL |
5000mAh |
φ21.15×70.15mm |
71g |
≥1000 Cycles |
36C |
| INR21700/58E |
5700mAh |
φ21.5*70.85mm |
71g |
≥1000 Cycles |
5C |
| G13P |
46950 |
29Ah |
φ46.16*96.5mm |
415g |
≥1000 Cycles |
10C |
| G16 |
31.9Ah |
φ46.16*96.5mm |
420g |
≥1000 Cycles |
4C |
| G11E-V1 |
32.4Ah |
φ46.14*97.2mm |
423g |
≥1000 Cycles |
5C |
| C33 |
LFP |
3.2V |
33140 |
15Ah |
φ33*140mm |
267g |
≥2500 Cycles |
3C |
3. Customer Review
Every acknowledgment from clients fuels NOGIBattery's development. Our team stays dedicated to supplying dependable lithium cells for all partners.
4. Customer FAQ
Q: Are these genuine EVE C40 cells?
A: Yes, We supply EVE C40 cells according to the confirmed product grade and order requirements. Real product photos and available technical information can be provided before order confirmation.
Q: Can you match EVE C40 cells before shipment?
A: Yes. Cell matching can be provided according to project requirements. Please let us know your battery pack configuration and matching requirements when requesting a quotation.
Q: Can NOGI Battery support custom battery pack processing?
A: Yes. We can support battery processing and assembly based on project requirements. Send us your target voltage, capacity, series-parallel configuration, application and other technical requirements for evaluation.
Q: Can I order EVE C40 cells for a replacement battery project?
A: Yes, but compatibility should be confirmed before ordering. Please provide the original cell or battery specifications, dimensions, pack configuration and photos when available so our team can help evaluate the project.
Q: What information should I provide for an EVE C40 quotation?
A: Please provide the required quantity, application, destination country and any matching or processing requirements. For custom battery projects, voltage, capacity and pack configuration are also helpful.
Q: How are EVE C40 cells shipped internationally?
A: Shipping options depend on order quantity, destination country and current transportation requirements for lithium batteries. Please provide your destination and quantity so we can recommend a suitable shipping solution.
