Name: Farasis Grade A brand new 3.7V 58Ah nmc pouch rechargeable battery for forklift tricycle two wheeler
Brand: NOGI Battery
SKU: NMC-58FP
Availability: InStock
Rating: 5 (1 reviews)

Home > NMC Pouch Cell

Description Review

Description

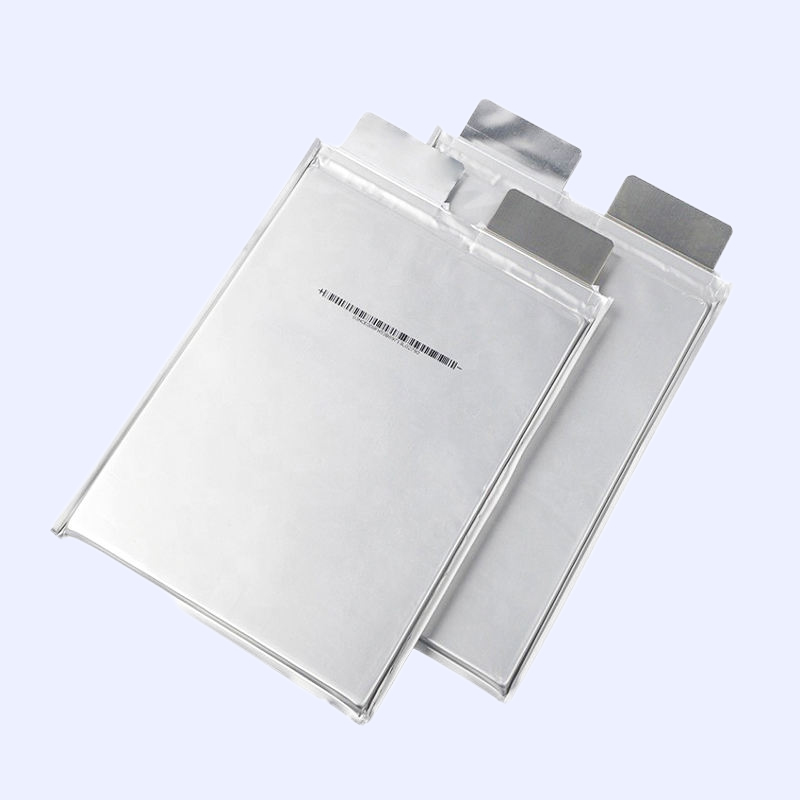

Farasis Grade A brand new 3.7V 58Ah nmc pouch rechargeable battery for forklift tricycle two wheeler motor etc

Grade A New NMC Battery Cell, High Quality;
100% inspected and packed very well, 2-Year Warranty;
Brand new Grade A Farasis 3.7V 58Ah NMC pouch rechargeable battery works as reliable ebike battery, motorcycle battery and automotive battery, also ideal golf cart batteries for light electric vehicles. This high-performance li-ion cell outperforms ordinary 3v lithium battery with high energy density and deep-cycle durability. Its flexible pouch design fits forklifts, tricycles and two-wheelers perfectly, delivering stable power, long cycle life and outstanding heat dissipation for all mobile power assembly projects.

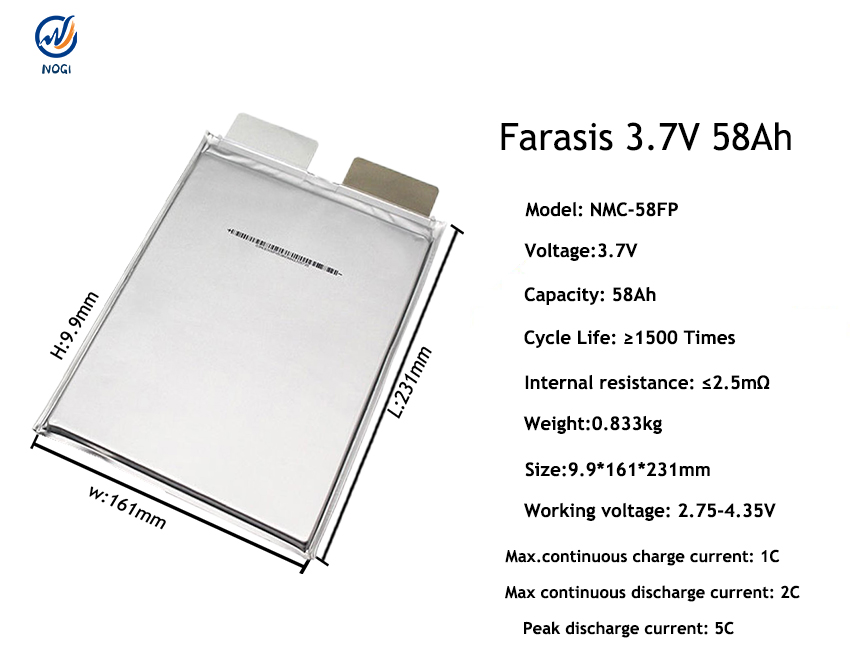

1. Cell Specifications

Battery Model	NMC-58FP
Battery Type	NMC Pouch Cell
Nominal Voltage	3.7V
Nominal Capacity	58Ah
Charge Voltage	4.35V
Discharge Cut-off Voltage	2.75V
Max Charge Current	1C
Max Discharge Current	5C
Internal Resistance	≤2.5mΩ
Charge Temperature	-20-55℃
Discharge Temperature	-30~55℃
Storage Temperature	-20~35℃
Cycle Life	≥1500 Times

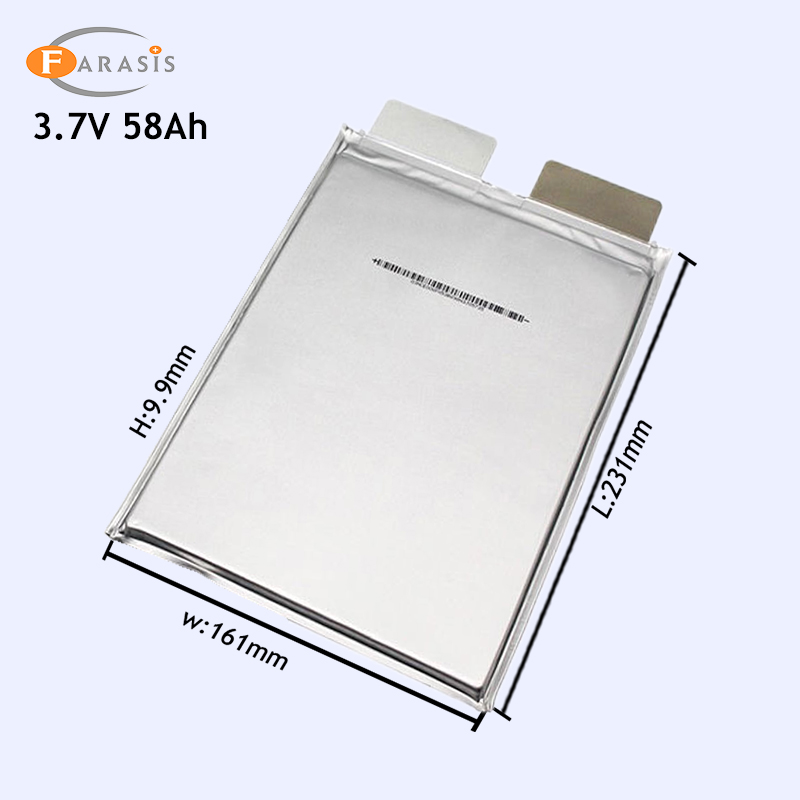

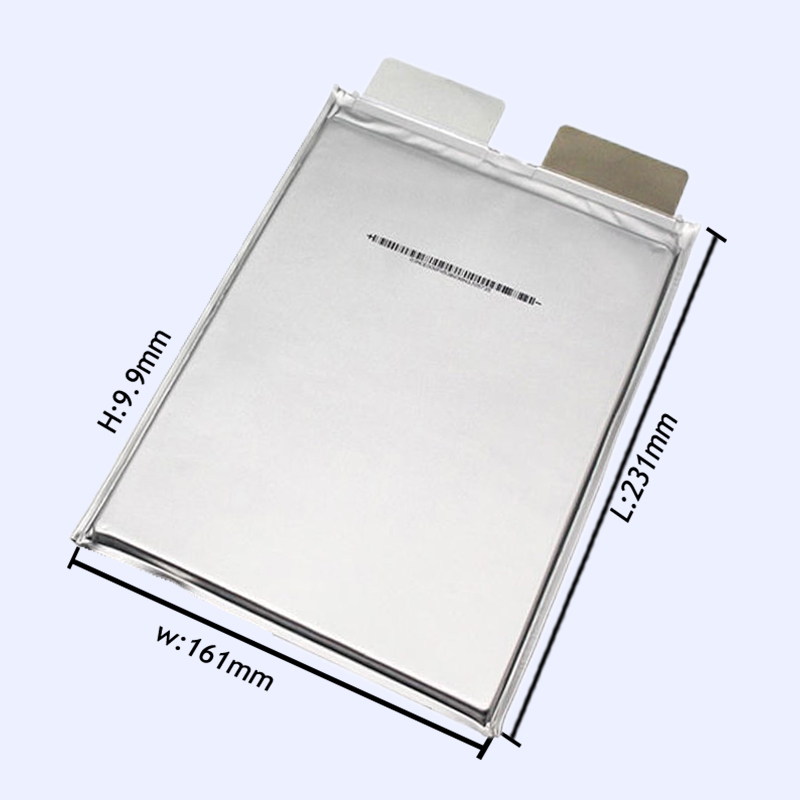

Battery Size	9.9161231mm
Battery Weight	0.83kg
Warranty	2 Years

How to Connect Pouch Cells in Series / Parallel

The tabs of pouch cells serve as conductive output terminals. The mainstream connection processes are as follows:

Laser Welding: Mainly applied in fully automatic production lines with fast welding speed and excellent consistency. (Recommendation)

Ultrasonic Welding: Weld tabs with nickel strips, copper busbars or PCBs. This is the widely adopted industrial solution featuring low contact impedance and reliable connections. (Recommendation)

Bolt/Screw Connection: Suitable for large-size thick tabs. It allows easy disassembly and maintenance yet requires more assembly space. (If must）

2. Why NMC Pouch Cell?

Ultra-High Energy Density & Lightweight Design

Replacing bulky metal casings with lightweight aluminum-laminated packages, NMC pouch cells deliver a high gravimetric energy densityand excellent volumetric energy density. This ultra-light, high-energy structure effectively extends EV driving range and optimizes the portability of portable electronic devices.

Excellent Thermal Performance & High-Rate Fast Charging

The thin stacked structure enables full-surface heat dissipation, effectively eliminating cell hot spots when cooperating with liquid cooling systems. It stabilizes NMC cathode structure during high-current charging, supporting high C-rate fast charging while maintaining reliable safety and long cycle life.

Flexible Form Factor & High Space Utilization

Featuring highly customizable shapes and sizes, pouch cells adapt to diverse installation spaces and perfectly match EV skateboard chassis designs. They achieve over 90% pack volumetric utilization, vastly outperforming 60–70% efficiency of conventional cylindrical cells for superior space utilization.

Low DCIR & Lifelong Stable Power Output

Multi-tab and full-tab designs lower DC internal resistance and electrochemical polarization, providing a flat and stable discharge voltage plateau. Reduced Joule heat inhibits cathode degradation and metal dissolution, sustaining stable power output and structural stability throughout the full cell lifecycle.

Hot-selling NMC Pouch Cells

Voltage	Capacity	Brand	Type	Battery Size	Battery Weight	Cycles life	Peak discharge Rate	WH/kg
3.7V	32Ah	Farasis	Liquid	231(256)6160mm	0.51kg	≥1500 Cycles	3C	232
3.7V	40Ah	SK	Liquid	320(390)997mm	0.66kg	≥2000 Cycles	3C	224
3.7V	45Ah	SK	Liquid	190(225)10175mm	0.72kg	≥2000 Cycles	3C	231
3.7V	50Ah	SK	Liquid	300(340)11.598mm	0.74kg	≥2000 Cycles	4C	250
3.7V	50Ah	Farasis	Liquid	316(358)10.5103mm	0.755kg	≥1500 Cycles	5C	244
3.7V	50.5Ah	EVE	Liquid	301.511.699.7mm	0.735kg	≥1000 Cycles	3C	254
3.7V	53Ah	Farasis	Liquid	2319.9161mm	0.822kg	≥1500 Cycles	8C	237
3.7V	55Ah	Farasis	Semi-solid	2319.7161mm	0.768kg	≥2000 Cycles	4.8C	270
3.7V	55.6Ah	SK	Liquid	354(375)10100mm	0.75kg	≥1500 Cycles	3C	280
3.7V	57Ah	Farasis	Semi-solid	294.412.04103.9mm	0.789kg	≥2000 Cycles	5C	269
3.7V	58Ah	Farasis	Liquid	2319.9161mm	0.833kg	≥1500 Cycles	5C	260
3.7V	60Ah	SK	Liquid	300(316)14.5100mm	0.88kg	≥1500 Cycles	5C	250
3.7V	60.3Ah	SK	Liquid	3549.5101mm	0.748kg	≥1500 Cycles	1C	298
3.7V	70Ah	Farasis	Semi-solid	294.414.3104mm	0.949kg	≥2000 Cycles	5C	270
3.7V	73Ah	Farasis	Liquid	295 (365)14.3104mm	0.952kg	≥1500 Cycles	4.45C	280
3.7V	76Ah	Farasis	Liquid	294.4 (364)14.4105.5mm	0.978kg	≥1500 Cycles	4.45C	284
3.7V	77.7Ah	SK	Liquid	5308.699.7mm	1.07kg	≥1000 Cycles	5.51C	268

3. Customer Review
Every acknowledgment from clients fuels NOGIBattery's development. Our team stays dedicated to supplying dependable lithium cells for all partners.

4. Customer FAQ
1) Can I have a sample order for the battery?
A: Surely, sample order and mixed samples are acceptable.
2) Do you have the used batteries?
A: Sorry, no, our batteries are all brand new.
3) Can we change to Nickel tabs for easy installation?
A: Yes, we can laser welding nickel tabs per your needs.
4) Will you test each battery before delivery?

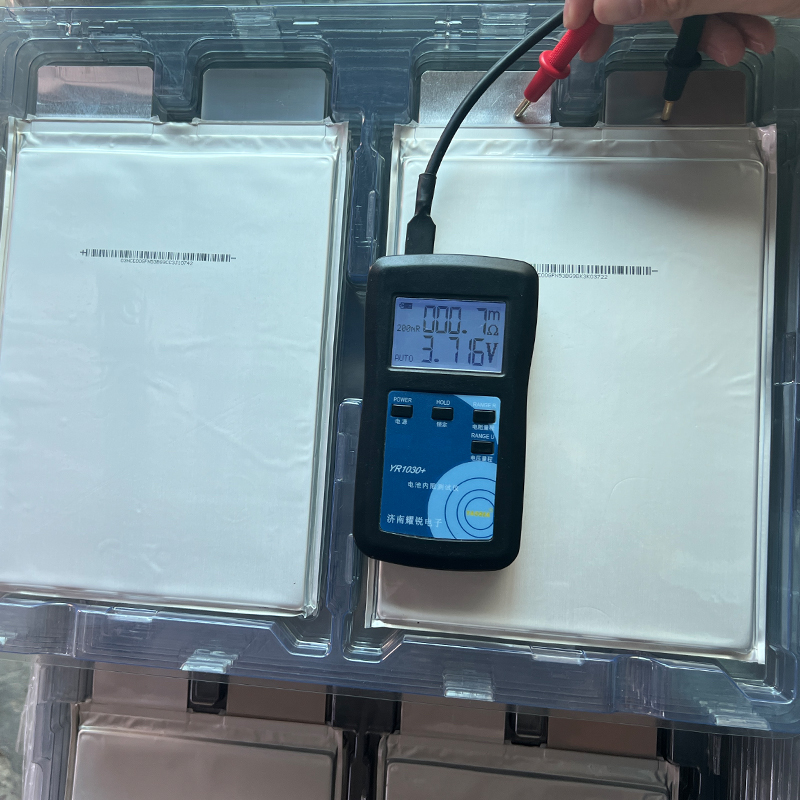

A: Surely, We test all the battery Voltage and Internal resistance before shipping.
5) What about Lead time?
A: We almost supply stock batteries, and usually, it takes 2-7days to prepare them.
6) How can I place the order?
A: Contact us for your needs, and then we will make a full quotation for your check. DDP (door to door) shipping is also available. And we can do Alibaba trade assurance order also if you need.
