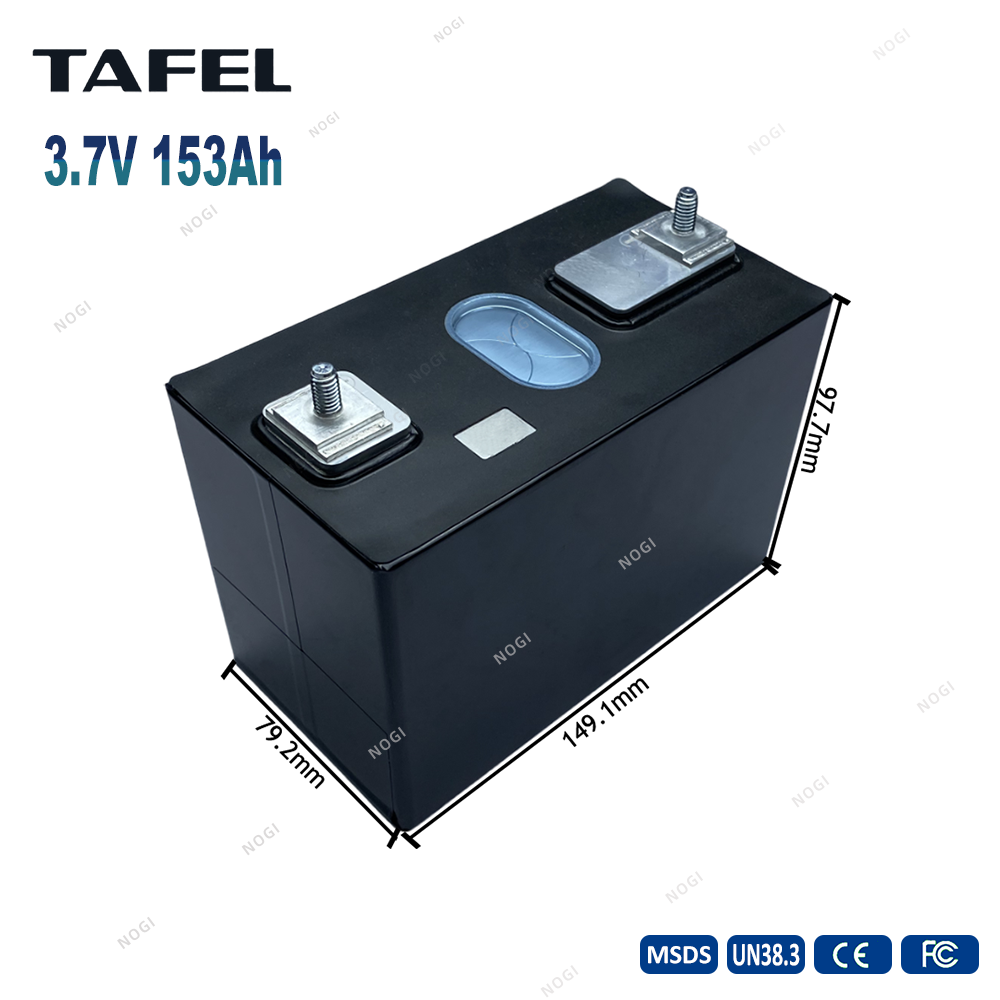

Brand new Tafel 153ah battery cell 3.7V ncm battery with M6 M8 stud optional
Grade A New NMC Battery Cell, High Quality;
100% inspected and packed very well, 2-Year Warranty;
This brand-new Tafel 3.7V 153Ah li ion NCM cell is a high-performance li nmc battery built with stable ternary cathode technology. As a standard NCM battery, this Tafel 153Ah battery cell delivers balanced energy density and steady discharge output with low internal resistance. It provides flexible terminal choices of M6 and M8 studs to meet diverse pack assembly demands. The solid aluminum casing ensures good heat dissipation and structural stability, supporting flexible series-parallel connection. Under rigorous factory testing, it boasts long cycle lifespan and reliable safety performance. Widely applied in solar energy storage, light electric vehicles and portable power stations, this NCMbattery offers durable and cost-effective power solutions for various energy projects.

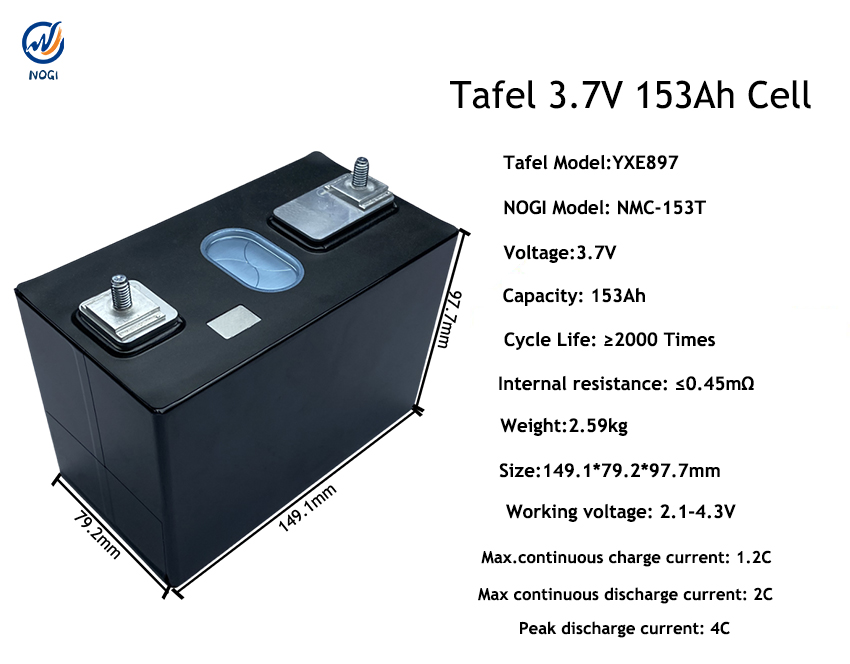

1. Cell Specifications
|
Battery Model
|
NMC-153T
|
|
Battery Type
|
Prismatic rechargeable NMC battery
|
|
Nominal Voltage
|
3.7V
|
|
Nominal Capacity
|
153Ah
|
|
Charge Voltage
|
4.3V
|
|
Discharge Cut-off Voltage
|
2.1V
|
|
Max Charge Current
|
1.2C
|
|
Max Discharge Current
|
2C
|
|
Peak Discharge Current
|
4C
|
|
Internal Resistance
|
≤0.45mΩ
|
|
Charge Temperature
|
0-45℃
|
|
Discharge Temperature
|
-20~60℃
|
|
Storage Temperature
|
-20~45℃
|
|
Cycle Life
|
≥2000 Times
|
|
Battery Size
|
149.1*79.2*97.7mm
|
|
Battery Weight
|
2.59kg
|
|
Warranty
|
3 Years
|
2. Why NMC prismatic cells?
Longer Driving Range (high energy density NMC)
NMC chemistry offers greater energy density than LFP. It extends vehicle mileage without extra battery weight.
Compact, space-saving battery packs (tight rectangular stacking)
Flat rectangular cells stack with minimal empty space. Modules become smaller to save equipment layout room.
Stable, Low-swelling long-term cycling (hard prismatic shell)
Solid aluminum shell limits electrode expansion. No bulging issues like soft pouch cells after long cycles.
Excellent low-temperature performance
NMC retains high capacity in cold weather. Avoids severe power drop problems common with LFP batteries in winter.
High power output & fast charging capability
Balanced NMC formula supports strong peak power for acceleration, and fast charging.
Vibration-resistant, easy-to-assemble modular battery systems
Metal casing withstands road shocks and vibration. Fewer cells and terminals simplify pack assembly work.
3. Customer Review
Every acknowledgment from clients fuels NOGIBattery's development. Our team stays dedicated to supplying dependable lithium cells for all partners.
4. Customer FAQ
Q: What's the core difference between NMC prismatic cell and LFP prismatic cell?
A: NMC lithium ion cell delivers higher energy density and better cold weather performance for mobile EV equipment, while LFP prismatic battery provides longer cycle life and higher intrinsic safety for stationary storage. NMC needs stricter thermal management and exclusive BMS, and LFP enjoys lower long-term maintenance cost without cobalt raw materials.
Q: How to quickly distinguish Grade A and Grade B prismatic NMC cells?
A: Inspect: flawless casing without dents, scratches or bulges; consistent OCV within ±5mV and internal resistance within ±5% of spec sheet; full QR traceability with complete factory test reports.
Q: What certifications do your NMC prismatic cells have?
A: NOGIBattery can provide UN38.3, MSDS, IEC for shipping and customs clearance, with optional UL, CE and RoHS for different regional markets. Official test reports are available on request.
Q: Can you arrange DDP delivery for NMC prismatic cells?
A: Yes, NOGIBattery can support DDP shipping service covering customs clearance, import duties and door-to-door delivery.
Q: Do you offer laser welding service and matching accessories for NMC prismatic cells?
A: Yes, For prismatic cells, NOGIBattery can offer laser welding service including M6/M8 stud welding, tab welding & semi-finished modules welding. Supporting accessories like epoxy boards, connectors, nuts & washers per your needs.
