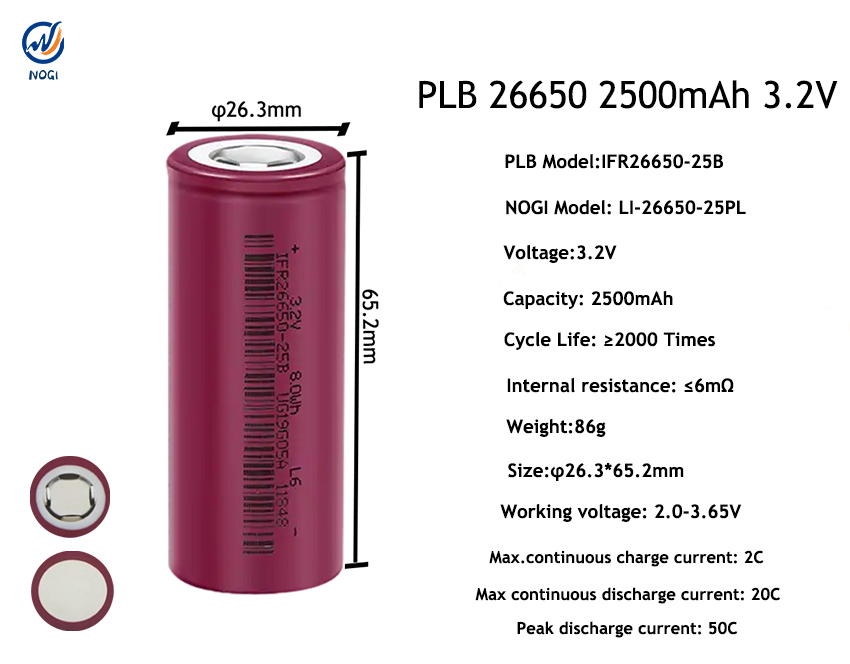

Battery Model
|
LI-26650-25PL
|
|||
|
Battery Type
|
Cylindrical 26650 lifepo4 battery
|
|||
|
Nominal Voltage
|
3.2V
|
|||
|
Nominal Capacity
|
2500mAh
|
|||
|
Charge Voltage
|
3.65V
|
|||
|
Discharge Cut-off Voltage
|
2.0V
|
|||
|
Max Charge Current
|
2C
|
|||
|
Max Discharge Current
|
20C
|
|||
|
Peak Discharge Current
|
50C
|
|||
|
Charge Temperature
|
0-45℃
|
|||
|
Discharge Temperature
|
-20~60℃
|
|||
|
Storage Temperature
|
-20~45℃
|
|||
|

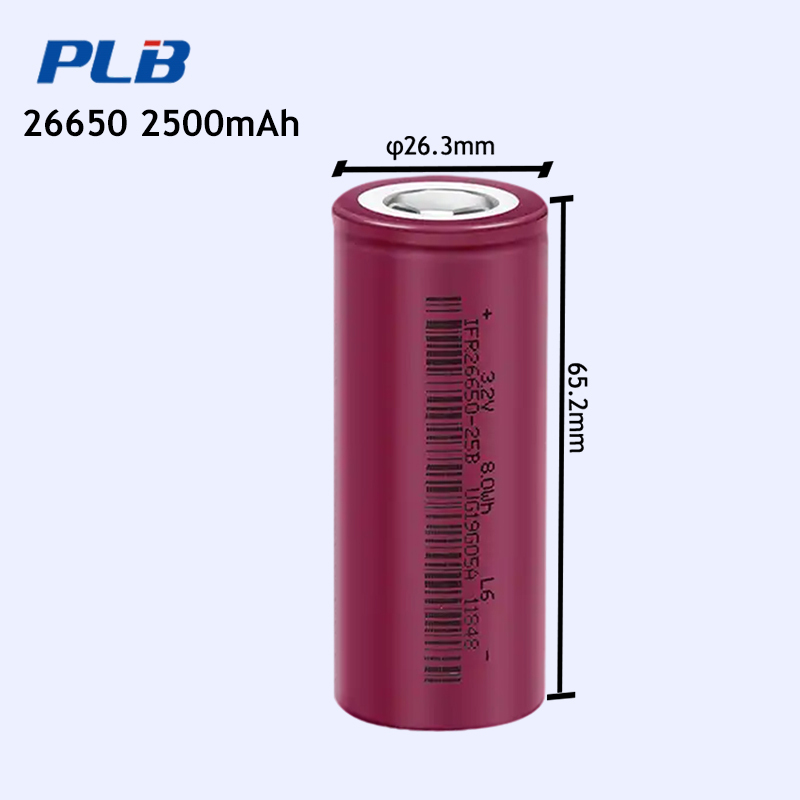

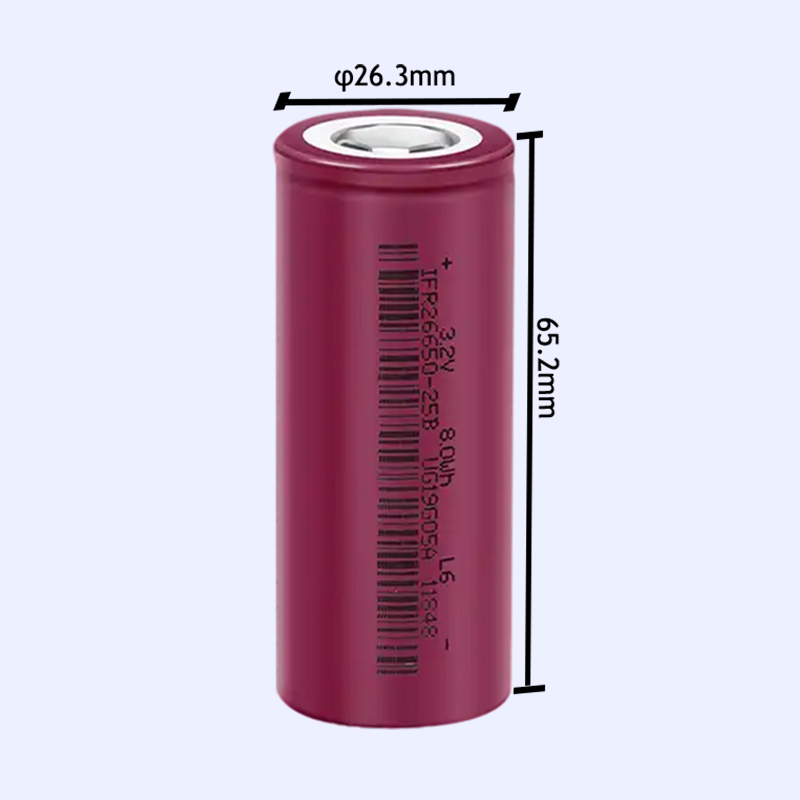

Battery Size
|
φ26.3*65.2mm
|
|||
|
Battery Weight
|
About 89g
|
|||
|
Warranty
|
2 Years
|
|||
| 26650 lifepo4 battery | ||||||
| Model | Capacity | Voltage | Internal Resistance |
Max.Continuous Charge Current |
Max.Continuous Discharge Current |
Peak Discharge Current |
| IFR26650-25B | 2500mAh | 3.2V | ≤6mΩ | 2C | 20C | 50C |
| IFR26650-30B | 3000mAh | 3.2V | ≤10mΩ | 3C | 10C | 20C |
| LFR26650-33A | 3300mAh | 3.2V | ≤20mΩ | 2C | 3C | 8C |
| LFR26650-36A | 3600mAh | 3.2V | ≤25mΩ | 1.5C | 3C | 8C |
| LFR26650-38A | 3800mAh | 3.2V | ≤20mΩ | 1.3C | 3C | 6.5C |
| LFR26650-40A | 4000mAh | 3.2V | ≤20mΩ | 1.3C | 3C | 6.25C |
