Name: CALB brand new 3.2V 230Ah EV Lifepo4 Prismatic Lithium Ion cell L173F230 battery for ESS EV energy s
Brand: NOGI Battery
SKU: LI-230Z
Availability: InStock
Rating: 5 (1 reviews)

Home > LiFePO4 Battery

Description Review

Description

CALB brand new 3.2V 230Ah EV Lifepo4 Prismatic Lithium Ion cell L173F230 battery for ESS EV energy storage

Grade A New LiFePO4 Battery Cell, High Quality;
100% inspected and packed very well, 2-Year Warranty;
CALB brand new 3.2V 230Ah prismatic lithium ion cell L173F230 is premium CALB Lifepo4 cell. This reliable 230ah lifepo4, calb 230ah grade A cell features ≥4000 cycles and low internal resistance. As high-performance EV Lifepo4, it supports series and parallel assembly. Widely used for ESS, electric vehicles and solar batteries, the LFP cell provides stable power output, high safety and long service life for energy storage projects around the world.

1. Cell Specifications

Battery Model	LI-230Z (L173F230）
Battery Type	Prismatic LiFePo4 rechargeable battery
Nominal Voltage	3.2V
Nominal Capacity	230Ah
Charge Voltage	3.65V
Discharge Cut-off Voltage	2.5V
Charging time	4 Hours(Ref.)
Max Charge Current	1C
Max Discharge Current	1C
Internal Resistance	≤0.3mΩ
Charge Temperature	0-55℃
Discharge Temperature	-30~65℃
Storage Temperature	-20~35℃
Cycle Life	≥4000 Times

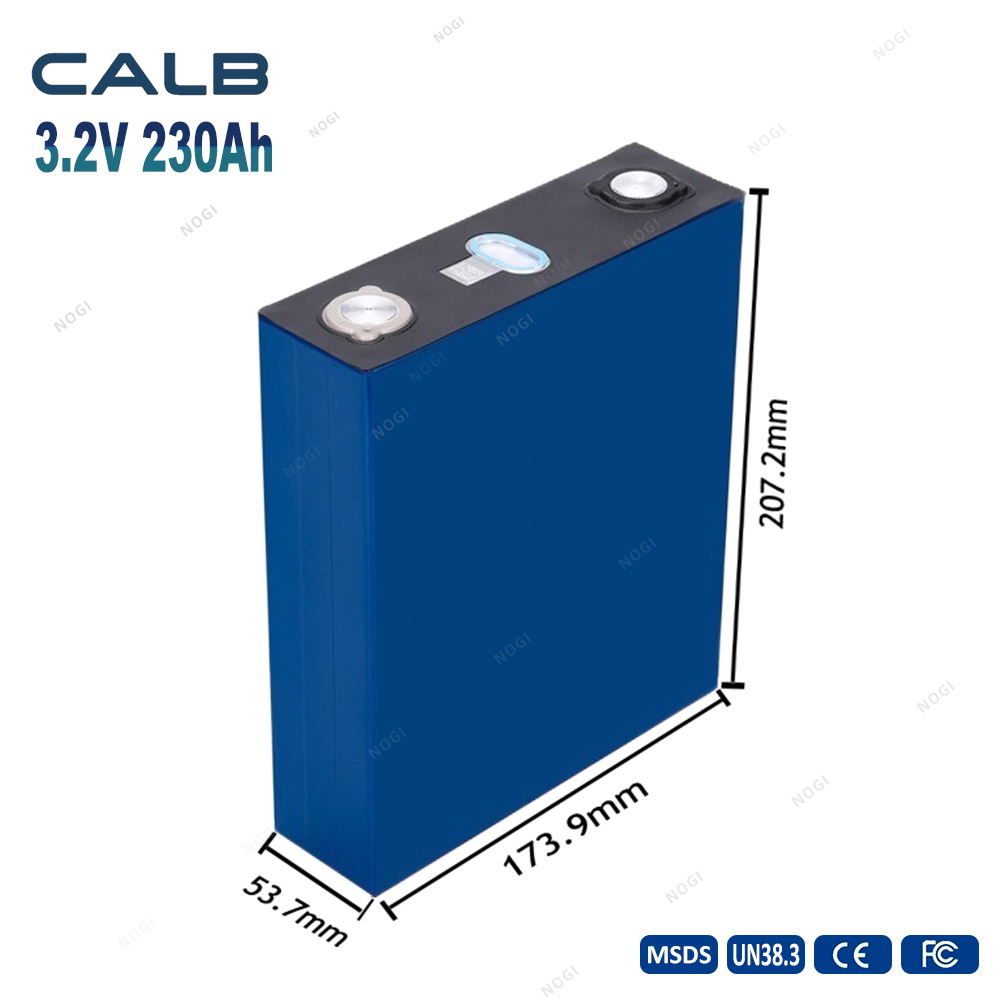

Battery Size	173.9207.253.7mm
Battery Weight	4.17kg
Warranty	2 Years

2. Why CALB LFP Battery Cells?

As a global lithium-ion leader, CALB delivers LiFePO4 cells that redefine safety and longevity—from EVs to grid storage.

1. Ultra-Long LFP Cycle Life

CALB's "Crystal" LFP cathode technology enables up to 15,000 deep discharge cycles—25+ years of service—drastically reducing LCOE.

2. Intrinsic LFP Safety + CALB Thermal Barrier

The stable olivine structure of LiFePO4, combined with CALB's thermal-electrical separation and aerogel insulation, prevents thermal runaway—zero incidents across global deployments.

3. Wide-Temperature LFP Versatility

Exceptional low-temperature LiFePO4 performance supports 6C fast charging and reliable operation from -35°C to 65°C for EVs, marine, and industrial storage.

4. System-Level LFP Efficiency

CALB's CIR integrated design cuts structural parts by 20%, achieving 96.5% system efficiency and 170Wh/kg energy density—pushing LFP chemistry to its limits.

5. Globally Proven LFP Quality

A premier LFP supplier to leading EV OEMs, CALB's quality is validated by IATF 16949 and proven across millions of electric vehicles worldwide.

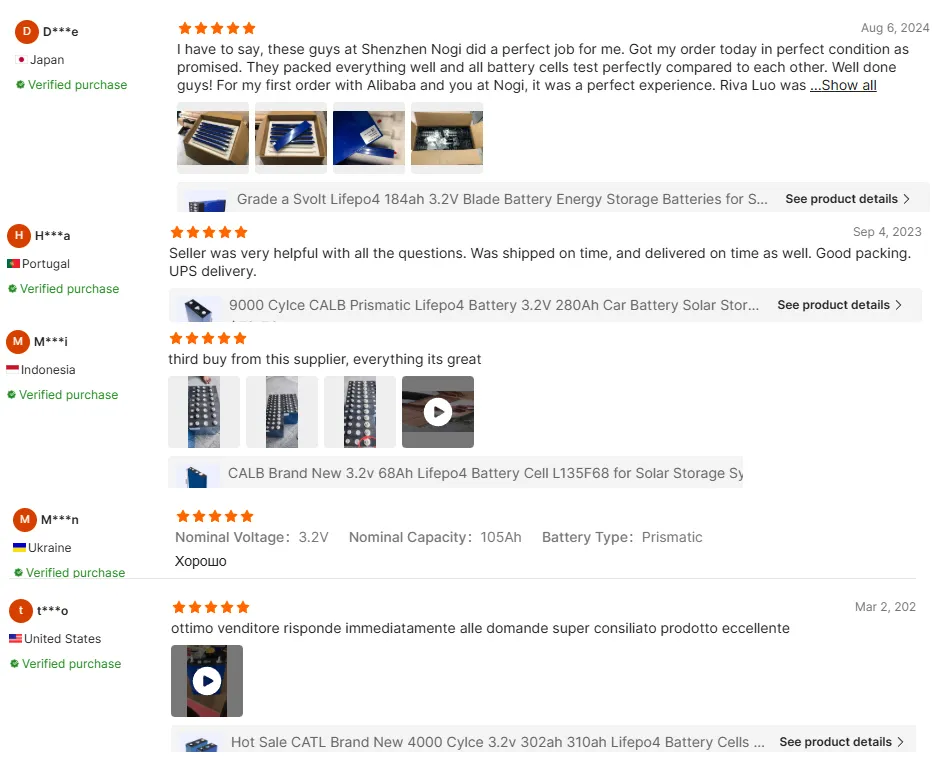

3. Customer Review

Every acknowledgment from clients fuels NOGIBattery's development. Our team stays dedicated to supplying dependable lithium cells for all partners.

4. Customer FAQ

Q: Are CALB LiFePO4 cell safe?

A: Yes. LiFePO₄ chemistry provides excellent thermal stability and enhanced safety compared with other lithium battery chemistries.

Q: What projects are CALB LFP cells suitable for?

A: Solar energy storage system (ESS), off-grid power, RV/camper, yacht & marine power, forklifts, golf carts, commercial electric vehicles, telecom backup power.

Q: Do CALB LFP cells have low self-discharge?

A: Yes. CALB LFP cells have low self-discharge characteristics, helping maintain stored energy during long-term storage.

Q: How do you ensure CALB LFP cell quality?

A: Cells from CALB direclty. And each batch is inspected through strict quality control processes to ensure capacity consistency, safety, and reliable performance.

Q: Are CALB LFP batteries recyclable?

A: Yes. LFP contains no cobalt and nickel. After end-of-life, materials can be professionally recycled.

Review

Tabea

Apr 07, 2022

A good company to deal with. High quality, good service,good price. I am happy for the cooperation.
